Installation

Central locking

Professioneller Einbau der RV Tech Zentralverriegelung für Stauraumklappen. Mehr Sicherheit und Komfort durch gemeinsames Öffnen und Verriegeln von bis zu sechzehn Außenklappen per Fahrzeugfernbedienung oder Schalter im Innenraum. Passend für viele Reisemobil Marken und Schlösser von STS, Happich, Fawo und Hymer Alu. Fachgerechte Nachrüstung für ein beruhigendes Gefühl unterwegs und im Stand.

Installation examples

Installation examples for different motorhome brands

Easy installation in all motorhomes with STS, Happich, Fawo or Hymer aluminum locks

For easy retrofitting to Carthago, Concorde, Morelo, Phoenix, Bürstner and Dethleffs motorhomes as well as other motorhomes with STS, Happich, Fawo or Hymer aluminum locks on the external hatches.

Carthage

C-LINE AND C-TOURER

C-LINE 4.8

Perfect and invisible cable routing beneath the carpet covering.

C-LINE 4.2

A large rear garage door from Carthago: cable routing invisible, but retrofitted.

C-LINE 5.0

Perfect and invisible cable routing under the carpet covering on a small rear garage door

C-LINE 4.7

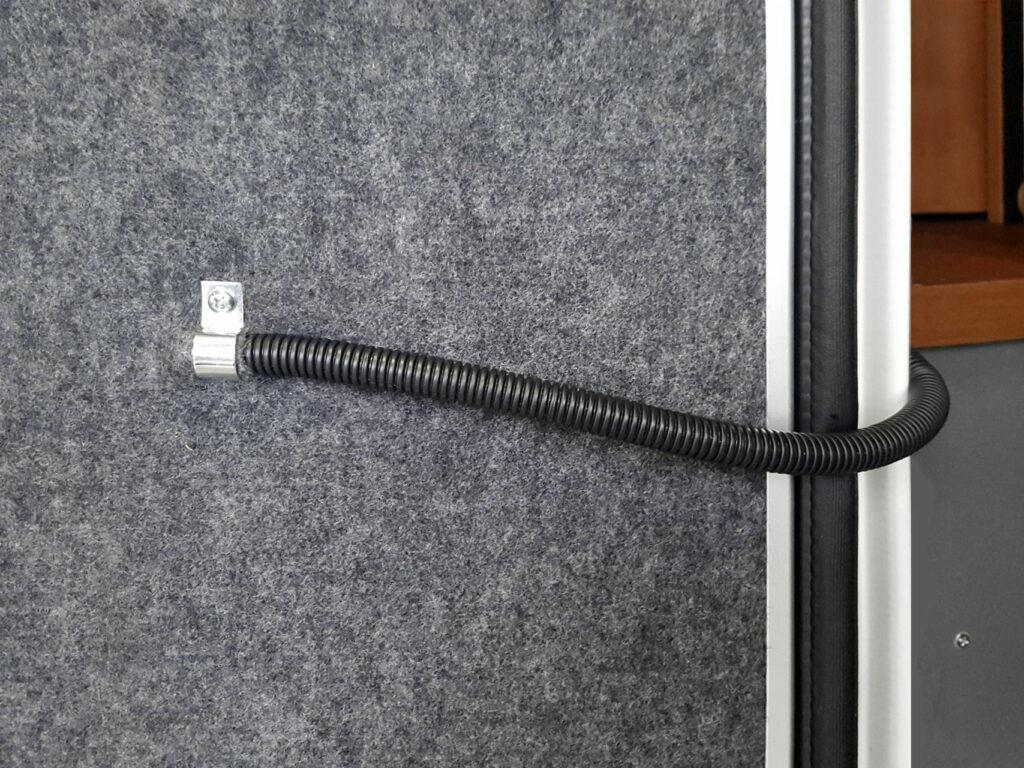

Simple cable routing via a small flap using PMA protective tubing.

C-LINE 5.0

A small storage compartment door from Carthago.

C-LINE 4.2

Perfect and invisible cable routing beneath the carpet covering.

C-TOURER 143

Simple cable routing via a small flap using PMA protective tubing.

C-LINE T4.3

Perfect integration of the control unit into the electrical center of the rear garage.

C-LINE 4.9

Very nice cable routing in cable ducts with T-pieces and 90 degree angles.

Concorde

CRUISER

Many flaps waiting for central locking.

To be able to control the right and left sides separately, two systems were installed.

So perfect that you could mistake it for standard equipment.

Even at the large rear garage doors, cable routing is not a problem.

Close the flaps and off you go!

LINER

Clean lines on the liner by Markus Löhrer (womoclick.de)

Neat cable routing in cable channels on a rear garage door of the liner by Markus Löhrer (womoclick.de).

CARVER

Very nice cable routing in cable ducts with 90-degree angles and end piece on an external flap.

Cable connection with slotted corrugated hose 7 x 10 mm on an external flap.

Internal cable routing with 9x13mm corrugated tubing

Perfect integration of the control unit into the electrical center of the rear garage

CREDO

The flap for the toilet tank is also integrated into the system.

Many small flaps that no longer require a key.

White cable channels matching the interior color of the flap.

Phoenix

PhoeniX A 8800 BGS

Integration of the control unit and the receiver of the handheld transmitter set.

The invisible cable routing in the central groove of the flaps, covered by the seal, is only possible with PhoeniX.

A short connecting bore for the milled recess for the recessed handle lock ensures the connection between the center groove and the lock case.

The connecting hole for the recessed handle lock.

With built-in recessed handle lock.

The same applies to the rear garage.

The included cables can also fit into the groove when used by two people.

Perfect cable routing, even inside the rear garage.

Perfect cable routing!.

A great final result!

Hymer

Hymer B680 Starline

The initial situation with the original Hymer rotary latch locks.

The final result after conversion to STS recessed handle locks.

Not only the two rear garage doors, but also the side flaps were modified.

Because the original Hymer rotary latch locks have a different hole pattern, cover plates had to be mounted under the new locks, which the customer made from plastic sheets.

The technical control unit with the RV tech control unit installed in the lower right corner.

The additional radio receiver for our small remote control (handheld radio transmitter set) allows the customer to open the storage compartment flaps with an additional transmitter besides the vehicle key.

The finished result is impressive! Finally, a Hymer B680 Starline with central locking on the storage compartment doors.

Dethleffs

Esprit Comfort Alcove

A starter set and 2 additional locks.

The tailgates have 4 locking mechanisms.

Cable routing with corrugated tubing and cable duct at the flap.

Cable routing with corrugated tubing on the inside.

EIGHTY II

The customer is a kitesurfer and wanted neither a remote control nor a key to open the doors and storage compartments.

A combination lock and a waterproof RFID transponder were the ideal solution for him.

Very elegant, invisible cable routing and beautiful transitions to the flaps.

Very neatly done!.

The living room door was fitted with our standard locking mechanism, which then disappears behind the interior door panel.

The central control unit is very elaborately implemented! Different door codes open different groups: Everything locked, alarm armed, only living room door open, alarm disarmed, only flaps open or closed, etc.

Einbauvideo

Einbau der Zentralverriegelung für Stauraumklappen

In diesem Video wird der Einbau der Zentralverriegelung an den Stauraumklappen eines Wohnmobils gezeigt. Sie sehen die Montage der Antriebe, die Verbindung der Schlösser sowie die elektrische Anbindung des Systems. Das Video erklärt den Ablauf praxisnah und ergänzt die Einbauanleitung um visuelle Details für eine saubere und zuverlässige Nachrüstung.

You are currently viewing placeholder content from YouTube. To access the actual content, click the button below. Please note that this will involve sharing data with third parties.

More information

Unlock content Accept required service and unlock content

Installation partner

Find an installation partner near you

Number: 0 PRINT

Reviews

That's what they say Customers like you...

You are currently viewing a placeholder content from default. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

Unblock content

More information

questions and answers

FAQ

Ist die Zentralverriegelung für mein Wohnmobil geeignet

Die Zentralverriegelung ist für viele gängige Wohnmobilmarken und Stauraumklappen geeignet. Unterstützt werden unter anderem Schlösser von STS, Happich, Fawo und Hymer Alu. In den Einbauanleitungen und Videos wird gezeigt, worauf bei der Kompatibilität zu achten ist.

Kann ich die Zentralverriegelung selbst einbauen

Ja, der Selbsteinbau ist mit etwas technischem Verständnis gut möglich. Die Einbauanleitungen und Videos erklären jeden Schritt verständlich von der Montage bis zur elektrischen Anbindung. Alternativ kann der Einbau auch von einer Fachwerkstatt durchgeführt werden.
